정전기 억제기

SRV05-4Active

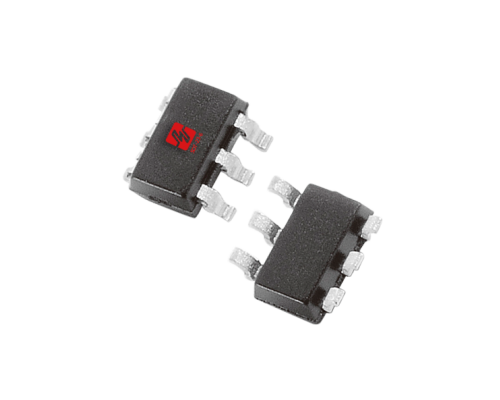

The SRV05-4 is a high-performance TVS (transient voltage suppression) diode array designed to protect sensitive electronic components from ESD, EFT, and lightning-induced surge events. Housed in the compact SOT-23-6L package, this device offers low capacitance and fast response time, making it ideal for safeguarding high-speed data interfaces such as USB, HDMI, Ethernet, and other communication lines.

데이터시트 지금 문의하세요

전기적 매개변수

Part Number SRV05-4

Package SOT-23-6L

Vrwm [Max] (V) 5

Vbr [Min] (V)6

Vc@Ipp [Max] (V)17.5

Ipp [Max] (A)5

Vesd [Contact] (KV)±8

Vesd [Air] (KV)±15

IR [max] (uA)1

Cj [max] (pF)0.6

TJ (°C)-55～+150

Status Active

제품 특징

Low Leakage Current Improves System Reliability 5A Surge Capability Protects Against Lightning and Power Fluctuations Protects Four I/O lines Fast Response Quickly Clamps Transient Voltage Ultra-low 0.6pF Capacitance Ensures Signal Integrity Compact SOT-23-6L Package Saves PCB Space
