정전기 억제기

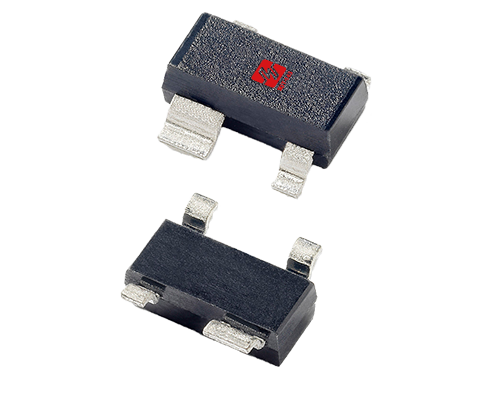

SR05Active

Protect your high-speed interfaces with the SR05 TVS Diode — a unidirectional ESD suppressor engineered for precision and reliability.With low capacitance, fast response time, and superior clamping performance, SR05 ESD diode is ideal for protecting USB, Ethernet, SIM, and other sensitive lines. Whether you're designing for consumer electronics or industrial systems, the device offers the protection your circuits demand.

데이터시트 지금 문의하세요

전기적 매개변수

Part Number SR05

Package SOT-143

Vrwm [Max] (V) 5

Vbr [Min] (V)6

Vc@Ipp [Max] (V)25

Ipp [Max] (A)5

Vesd [Contact] (KV)±8

Vesd [Air] (KV)±15

IR [max] (uA)1

Cj [max] (pF)2

TJ (°C)-55～+150

Status Active

제품 특징

Low Leakage Current Low Clamping Voltage Fast Response Time Low Capacitance Compact SOT-143 Package RoHS compliant
