정전기 억제기

SM712Active

Shield your sensitive electronics with the SM712 device, a asymmetrical(12V to 7V )TVS diode,engineered to absorb damaging electrostatic discharges (ESD), electrical fast transients (EFT), and surge events. With ultra-low clamping voltage and ultra-fast response time (<1ns), the SM712 is ideal for multi-point data transmission standard RS-485 applications.

데이터시트 지금 문의하세요

전기적 매개변수

Part Number SM712

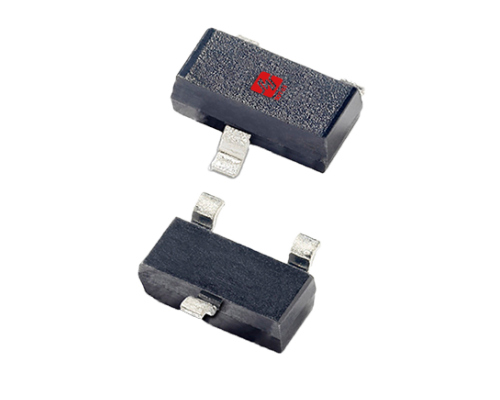

Package SOT-23

Vrwm [Max] (V) 7/12

Vbr [Min] (V)7.5/13.3

Vc@Ipp [Max] (V)12/26

Ipp [Max] (A)17

Vesd [Contact] (KV)±25

Vesd [Air] (KV)±25

IR [max] (uA)10/1

Cj [max] (pF)55

TJ (°C)-55～+150

Status Active

제품 특징

Low Leakage Current Low Clamping Voltage Fast Response Time Excellent Surge Capability Compact SOT-23 Package RoHS compliant
