정전기 억제기

SLVU2.8-8Active

The SLVU2.8-8 is an 8-channel TVS diode array engineered to protect sensitive low-voltage,high-speed data interfaces against ESD,EFT,and lightning-induced voltage surges.With its low operating voltage (2.8V), ultra-low capacitance (<3pF per line),and high surge current tolerance, this device is ideal for safeguarding high-speed communication interface,such as USB,HDMI,Ethernet,and other multi‑gigabit links that cannot tolerate either signal distortion or downtime.

데이터시트 지금 문의하세요

전기적 매개변수

Part Number SLVU2.8-8

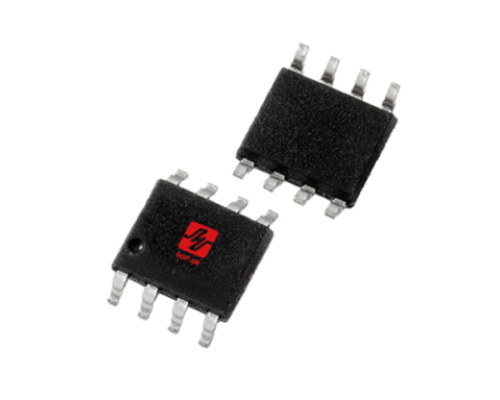

Package SOP-8

Vrwm [Max] (V) 2.8

Vbr [Min] (V)3

Vc@Ipp [Max] (V)20

Ipp [Max] (A)25

Vesd [Contact] (KV)±25

Vesd [Air] (KV)±25

IR [max] (uA)0.5

Cj [max] (pF)3

TJ (°C)-55～+125

Status Active

제품 특징

Low Clamping Voltage Low Capacitance Protects Two I/O or Power Line 500W Peak Pulse Power Meets IEC 61000-4-2 ROHS Compliant
