정전기 억제기

SE9D10B5.0MAActive

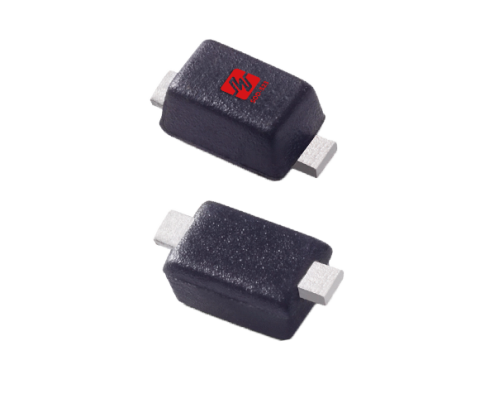

The SE9D10B5.0MA electrostatic suppressor product, utilizing SOD-923 standard packaging, features low leakage current, fast response time (in nanoseconds), high reliability, etc. It is widely applied in HDMI, USB, VGA, and other high-speed signal transmission interface ESD static protection, safeguarding each input/output pin, offering advanced protection for electronic devices susceptible to destructive electrostatic discharge (ESD).

데이터시트 지금 문의하세요

전기적 매개변수

Part Number SE9D10B5.0MA

Package SOD-923

Vrwm [Max] (V) 5

Vbr [Min] (V)6.5

Vc@Ipp [Max] (V)15

Ipp [Max] (A)2

Vesd [Contact] (KV)±15

Vesd [Air] (KV)±30

IR [max] (uA)0.1

Cj [max] (pF)0.6

TJ (°C)-55～+125

Status Active

제품 특징

Solid-state silicon-avalanche technology IEC61000-4-4 (EFT) 40A (5/50ns) Fast response time Low Clamping Voltage Low leakage current RoHS compliant
