정전기 억제기

SE5D10B5.0AActive

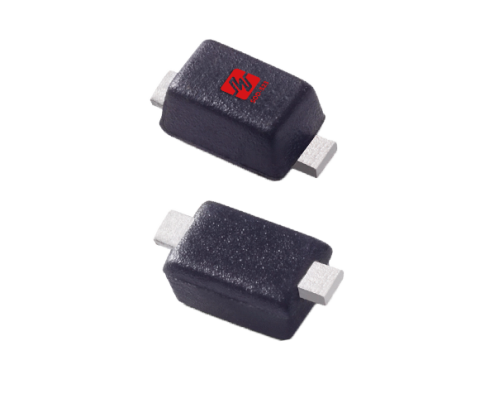

The SE5D10B5.0A electrostatic suppressor product, utilizing SOD-523 standard packaging, features low leakage current, fast response time (in nanoseconds), high reliability, etc. It is widely applied in HDMI, USB, VGA, and other high-speed signal transmission interface ESD static protection, safeguarding each input/output pin, offering advanced protection for electronic devices susceptible to destructive electrostatic discharge (ESD).

데이터시트 지금 문의하세요

전기적 매개변수

Part Number SE5D10B5.0A

Package SOD-523

Vrwm [Max] (V) 5

Vbr [Min] (V)5.6

Vc@Ipp [Max] (V)25

Ipp [Max] (A)5

Vesd [Contact] (KV)±8

Vesd [Air] (KV)±15

IR [max] (uA)1

Cj [max] (pF)15

TJ (°C)-55～+150

Status Active

제품 특징

Solid-state silicon-avalanche technology IEC61000-4-4 (EFT) 40A (5/50ns) Fast response time Low Clamping Voltage Low leakage current RoHS compliant
