정전기 억제기

SE26F40U3.3LD1Active

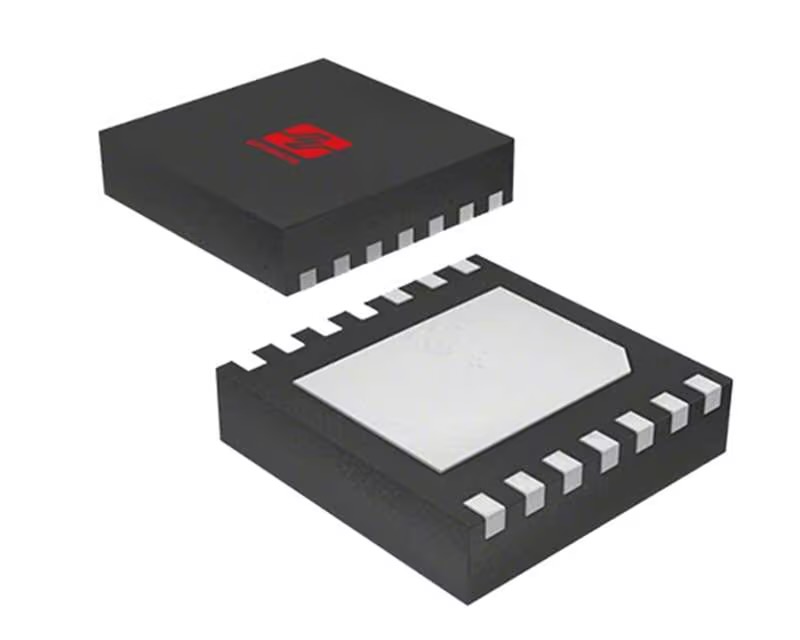

SE26F40U3.3LD1 electrostatic suppressor product utilizing DFN2626 standard packaging features low leakage current fast response time (in nanoseconds) high reliability etc. It is widely applied in HDMI USB VGA and other high-speed signal transmission interface ESD static protection safeguarding each input/output pin offering advanced protection for electronic devices susceptible to destructive electrostatic discharge (ESD).

데이터시트 지금 문의하세요

전기적 매개변수

Part Number SE26F40U3.3LD1

Package DFN2626

Vrwm [Max] (V) 3.3

Vbr [Min] (V)4

Vc@Ipp [Max] (V)17

Ipp [Max] (A)26

Vesd [Contact] (KV)±25

Vesd [Air] (KV)±25

IR [max] (uA)0.5

Cj [max] (pF)2.8

TJ (°C)-55～+125

Status Active

제품 특징

400Watts peak pulse power (tp = 8/20μs) Solid-state silicon-avalanche technology Low clamping voltage
