정전기 억제기

SE11F09B5.0UDActive

The SE11F09B5.0UD electrostatic suppressor product, utilizing DFN1109MP6 standard packaging, features low leakage current, fast response time (in nanoseconds), high reliability, etc. It is widely applied in HDMI, USB, VGA, and other high-speed signal transmission interface ESD static protection, safeguarding each input/output pin, offering advanced protection for electronic devices susceptible to destructive electrostatic discharge (ESD).

데이터시트 지금 문의하세요

전기적 매개변수

Part Number SE11F09B5.0UD

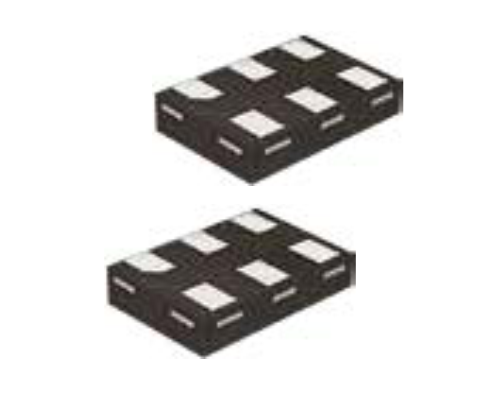

Package DFN1109MP6

Vrwm [Max] (V) 5

Vbr [Min] (V)6

Vc@Ipp [Max] (V)12

Ipp [Max] (A)4

Vesd [Contact] (KV)±25

Vesd [Air] (KV)±30

IR [max] (uA)1

Cj [max] (pF)0.2

TJ (°C)-55～+125

Status Active

제품 특징

Solid-state silicon-avalanche technology IEC61000-4-4 (EFT) 40A (5/50ns) Fast response time Low Clamping Voltage Low leakage current RoHS compliant
