정전기 억제기

SE10F10B3.3MAActive

The SE10F10B3.3MA is an ultra-low capacitance Electrostatic Discharge (ESD) protection device,designed specifically for high-speed data interfaces.This device provides robust protection for sensitive components against over-voltage events caused by Electrostatic Discharge (ESD), Electrical Fast Transients (EFT), Lightning, and Cable Discharge Events (CDE).

데이터시트 지금 문의하세요

전기적 매개변수

Part Number SE10F10B3.3MA

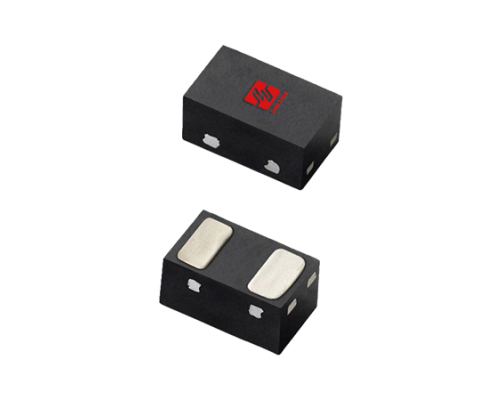

Package DFN1006-2L

Vrwm [Max] (V) 3.3

Vbr [Min] (V)4

Vc@Ipp [Max] (V)21

Ipp [Max] (A)4

Vesd [Contact] (KV)±23

Vesd [Air] (KV)±30

IR [max] (uA)1

Cj [max] (pF)0.22

TJ (°C)-55～+150

Status Active

제품 특징

Low Clamping Voltage Low Leakage Current Protects One I/O Line Ultra-low Capacitance IEC61000-4-4 (EFT) 40A RoHS Compliant
