정전기 억제기

SD36Active

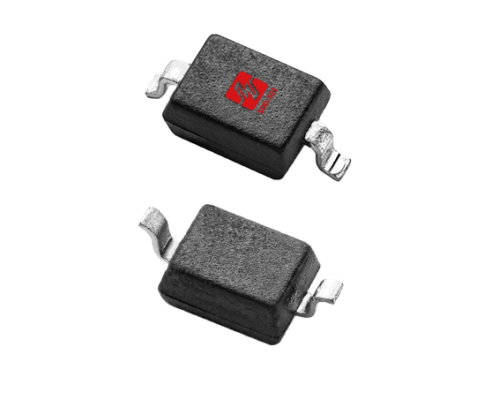

The SD36 TVS diode delivers powerful transient voltage suppression in an ultra-small SOD-323 package,making it the ideal solution for space-constrained and high-performance electronics.With up to 350W peak pulse power,ultra-fast response time,and low clamping voltage,this device ensures your sensitive components stay safe from ESD strikes,surges,and transients.Ideal for applications such as USB ports,RJ45 Ethernet connectors, HDMI lines, and other sensitive signal interfaces.

데이터시트 지금 문의하세요

전기적 매개변수

Part Number SD36

Package SOD-323

Vrwm [Max] (V) 36

Vbr [Min] (V)40

Vc@Ipp [Max] (V)75

Ipp [Max] (A)5

Vesd [Contact] (KV)±8

Vesd [Air] (KV)±15

IR [max] (uA)1

Cj [max] (pF)60

TJ (°C)-55～+125

Status Active

제품 특징

Low Clamping Voltage Low Leakage Current 350W Peak Pulse Power Protects One I/O Line IEC61000-4-4 (EFT) 40A ROHS Compliant
