정전기 억제기

GBLC08CIActive

The GBLC08CI TVS diode array delivers powerful transient voltage suppression in an ultra-small SOD-323 package,making it the ideal solution for space-constrained,high-performance electronics.With up to 350W peak pulse power,ultra-fast response time,and low clamping voltage,this device ensures your sensitive components stay safe from ESD strikes,surges,and transients.Ideal for applications such as USB ports,RS-485 interfaces,mobile devices,and automotive electronics.

데이터시트 지금 문의하세요

전기적 매개변수

Part Number GBLC08CI

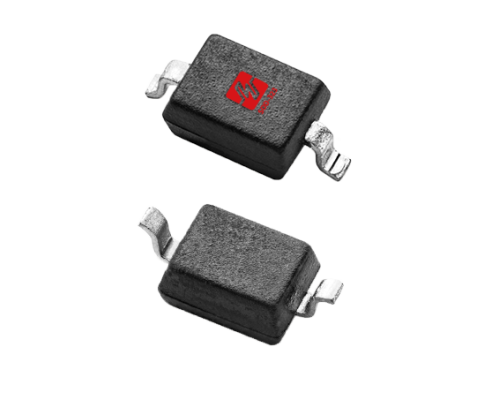

Package SOD-323

Vrwm [Max] (V) 8.0

Vbr [Min] (V)8.5

Vc@Ipp [Max] (V)24

Ipp [Max] (A)18

Vesd [Contact] (KV)±30

Vesd [Air] (KV)±30

IR [max] (uA)0.2

Cj [max] (pF)1

TJ (°C)-55～+150

Status Active

제품 특징

Low Clamping Voltage Low Leakage Current Fast Response Time 350W Peak Pulse Power Ultra Low Capacitance IEC 61000-4-2 Compliance
