단방향 사이리스터

TYN825Active

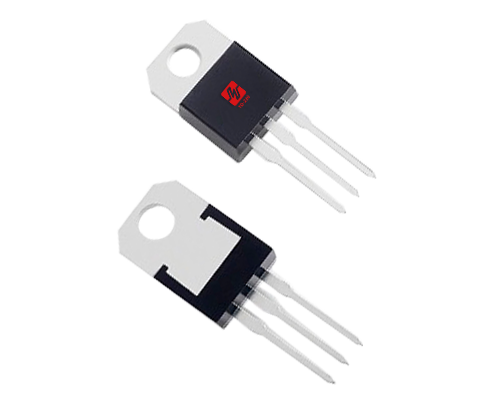

The TYN825 is a 800V,25A silicon-controlled rectifier with a standard TO-220A package ,designed for medium-power switching applications. It features reliable triggering, robust surge current capabilities, and is widely used in AC switching, light dimmers, motor control, heating regulation systems, and other industrial or consumer power electronics.

데이터시트 지금 문의하세요

전기적 매개변수

Part Number TYN825

PackageTO-220A

VDRM [Min] (V)800

VRRM [Min] (V)800

IT(RMS) [Min] (A)25

ITSM [Min] (A) 300

VTM [Min] (V) ≤1.55

IGT [Max] (mA) ≤40

Tj (°C) -40~+125

Status Active

제품 특징

High Voltage Capability Low Gate Current Robust Switching Performance Standard TO-220A Package Cost-Effective Reliability RoHS Compliant
