소신호 트랜지스터

2SD965AActive

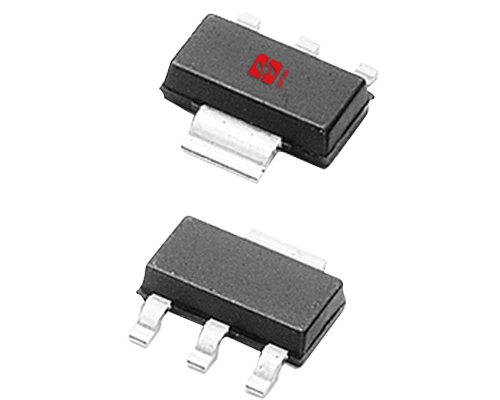

2SD965A NPN bipolar transistor packaged in a SOT-89 package suitable for low-power fast surface mounting. The product is designed for general amplifier applications in industries such as industrial power management and automotive electronics.

데이터시트 지금 문의하세요

전기적 매개변수

Part Number 2SD965A

Package SOT-89

AEC-Q101 QualifiedNo

Type NPN

PCM(W) 0.5

IC(A) 5

VCBO [Max] (V) 40

VCEO [Max] (V) 30

VEBO [Max] (V) 7

hFE [Min] 230

hFE [Max] 800

fT [Min] (MHz) 150

TJ (°C) -55~+150

Status Active

제품 특징

Low Collector-Emitter Saturation Voltage Large Collector Power Dissipation and Current Mini Power Type Package
