소신호 MOSFET

SPM1208Active

SNNM3400D series P-channel MOSFET adopts standard DFN2020-6L package. The product has low on-resistance. It is especially suitable for applications in network communications security monitoring notebook computers mobile phones TWS Bluetooth headsets smart lighting industrial power supplies and other fields. It can be used in Fast switching and low in-line power loss in a small surface mount package.

데이터시트 지금 문의하세요

전기적 매개변수

Part Number SPM1208

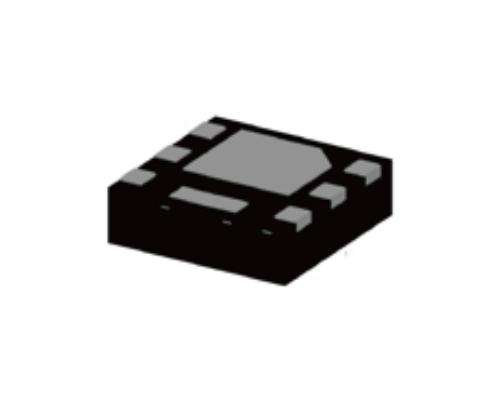

Package DFN2020-6L

AEC-Q101 QualifiedNo

Channel Type P

With ESD No

VDS [Max] (V) -12

VGS [Max] (V) ±12

ID [Max] (A) -8

RDS(ON)@10V
[Typ] (mΩ) -

RDS(ON)@10V
[Max] (mΩ) -

RDS(ON)@4.5V
[Typ] (mΩ) 23

RDS(ON)@4.5V
[Max] (mΩ) 35

RDS(ON)@2.5V
[Typ] (mΩ) 32

RDS(ON)@2.5V
[Max] (mΩ) 45

PD [Max] (W) 18

TJ (°C) -55～+175

Status Active

제품 특징

High power and current handing capability Lead free product is acquired Surface mount package
