쇼트키 다이오드

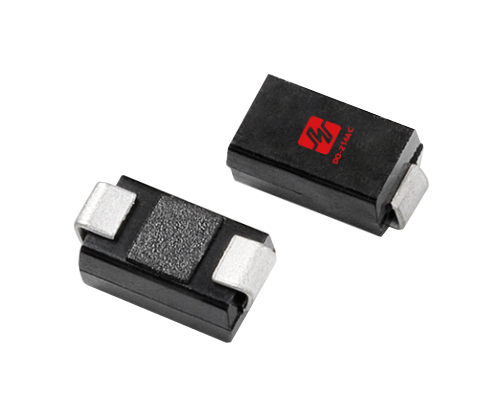

SS56AActive

The SS56A Schottky Barrier Diode is a high-efficiency 5A,60V surface mount diode featuring an ultra-low forward voltage drop (Vf ~0.7V) and fast switching capabilities. It is ideal for power rectification, DC-DC converters, reverse polarity protection, and high-frequency circuits, helping to minimize heat generation and improve energy efficiency.

데이터시트 묻다

전기적 매개변수

Part Number SS56A

Package SMA

AEC-Q101 Qualified No

VRRM [Max] (V) 60

VRMS [Max] (V) 42

IO [Max] (A) 5

IFSM [Max] (A) 100

VF [Max] (V) 0.7

IR [max] (mA) 0.5

TJ (°C) -55~+150

Status Active

특징

High Current Handling High Surge Capability Low Reverse Leakage Current Fast Switching Ideal For Automated Placement RoHS Compliant
