쇼트키 다이오드

SP1045Active

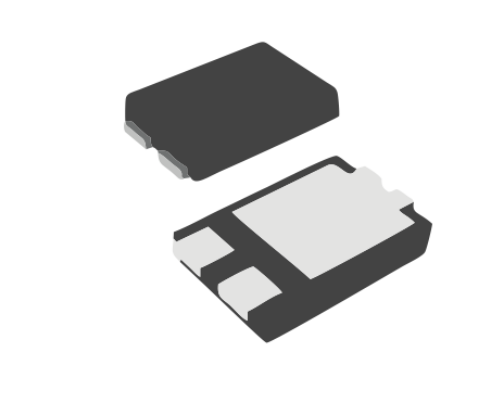

The SP1045 is a high-performance Schottky barrier rectifier in a TO-277B package,designed for low voltage, high frequency inverters, DC-DC converters, and freewheeling applications. With a forward current rating of 10A and a reverse voltage of 45V, this device offers excellent efficiency thanks to its low forward voltage drop and fast switching performance.

데이터시트 묻다

전기적 매개변수

Part Number SP1045

Package TO-277B

AEC-Q101 Qualified No

VRRM [Max] (V) 45

VRMS [Max] (V) -

IO [Max] (A) 10

IFSM [Max] (A) 180

VF [Max] (V) 0.55

IR [max] (mA) 0.1

TJ (°C) -55~+150

Status Active

특징

Low Forward Voltage Drop High Current Handling Fast Switching Low Power Loss Low Reverse Leakage Current Compact TO-277B Package
