쇼트키 다이오드

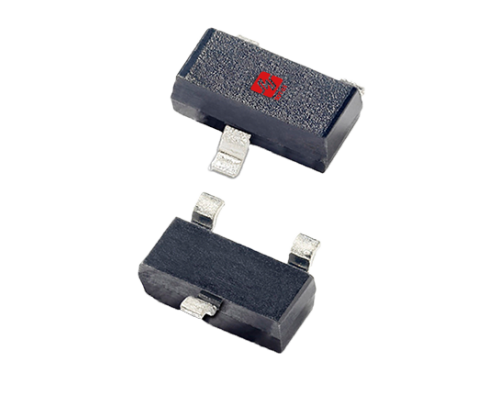

BAT54CActive

The BAT54C is a Schottky barrier diode configured with a common cathode, housed in a SOT-23 surface-mount package. Designed for high-speed switching, clamping, and signal routing applications, it offers low forward voltage drop, fast recovery time, and excellent efficiency. Ideal for signal rectification, DC-DC converters, and reverse polarity protection.

데이터시트 묻다

전기적 매개변수

Part Number BAT54C

Package SOT-23

AEC-Q101 Qualified No

VRRM [Max] (V) 30

VRMS [Max] (V) 21

IO [Max] (A) -

IFSM [Max] (A) 0.6

VF [Max] (V) 1

IR [max] (mA) 0.002

TJ (°C) 125

Status Active

특징

High Current Handling High Surge Capability Low Reverse Leakage Current Fast Switching Ideal For Automated Placement RoHS Compliant
