쇼트키 다이오드

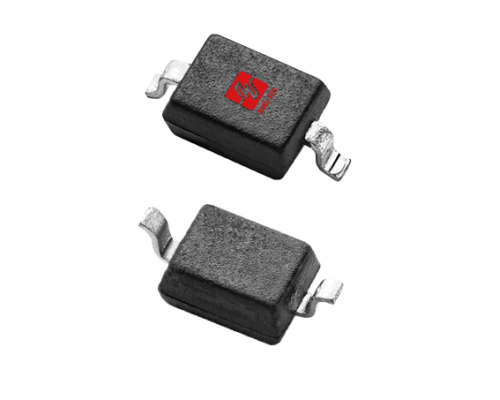

B5817WSActive

The B5817WS is a surface-mount Schottky barrier diode designed for high-efficiency rectification in low-voltage, high-frequency applications. With a 20V reverse voltage rating and 1A forward current, it is commonly used in power supplies, DC-DC converters, and reverse polarity protection circuits.

데이터시트 묻다

전기적 매개변수

Part Number B5817WS

Package SOD-323

AEC-Q101 Qualified No

VRRM [Max] (V) 20

VRMS [Max] (V) 14

IO [Max] (A) 1

IFSM [Max] (A) 9

VF [Max] (V) 0.45

IR [max] (mA) 1

TJ (°C) 125

Status Active

특징

Low Forward Voltage Drop Fast Switching Speed High Surge Capability Low Power Dissipation Compact SOD-323 Package RoHS Compliant
