정류 다이오드

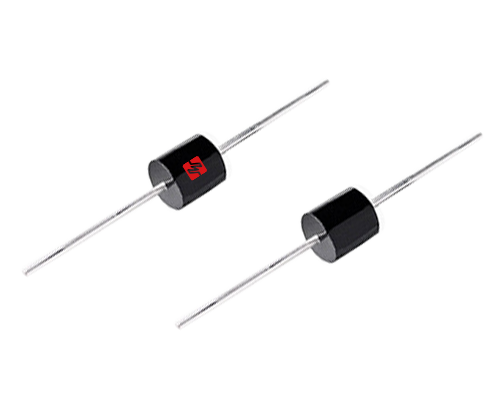

6A10Active

The 6A10 diode is a high-efficiency rectifier diode rated at 6A and 1000V, designed for power rectification in consumer and industrial electronic equipment. It provides fast recovery, low forward voltage drop,and excellent surge capability. The 6A10 is widely used in AC/DC converters,adapters,power supplies,and battery chargers.

데이터시트 지금 문의하세요

전기적 매개변수

Part Number 6A10

Package R-6/P-600

AEC-Q101 Qualified No

VRRM [Max] (V) 1000

VRMS [Max] (V) 700

IF(AV) [Max] (A) 6

IFSM [Max] (A) 200

VF [Max] (V) 1.1

Trr [Max] (ns) -

IR [max] (mA) 0.5

Cj [Typ] (PF) 150

TJ (°C) -55~+125

Status Active

특징

High reverse voltage rating of 1000V High current capacity up to 6A Low forward voltage of 1.1V High surge current up to 200A Low leakage current 6A10 R-6/P-600 package
