정류 다이오드

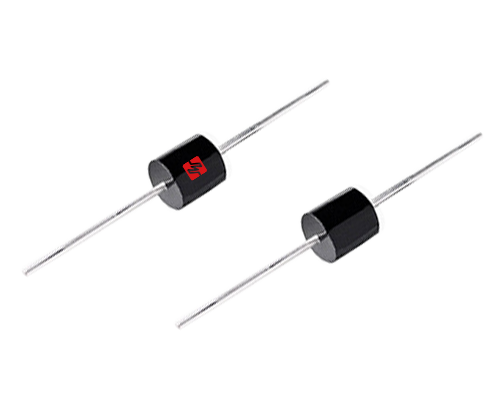

20A10Active

The 20A10 diode is a high-efficiency rectifier diode rated at 20A and 1000V, designed for power rectification in consumer and industrial electronic equipment. It provides fast recovery, low forward voltage drop,and excellent surge capability. The 20A10 is widely used in AC/DC converters,adapters,power supplies,and battery chargers.

데이터시트 지금 문의하세요

전기적 매개변수

Part Number 20A10

Package R-6/P-600

AEC-Q101 Qualified No

VRRM [Max] (V) 1000

VRMS [Max] (V) 700

IF(AV) [Max] (A) 20

IFSM [Max] (A) 400

VF [Max] (V) 1.1

Trr [Max] (ns) -

IR [max] (mA) 0.005

Cj [Typ] (PF) 150

TJ (°C) -55~+150

Status Active

특징

High reverse voltage rating of 1000V High current capacity up to 20A Low forward voltage of 1.1V High surge current up to 400A Low leakage current 20A10 R-6/P-600 package
