정류 다이오드

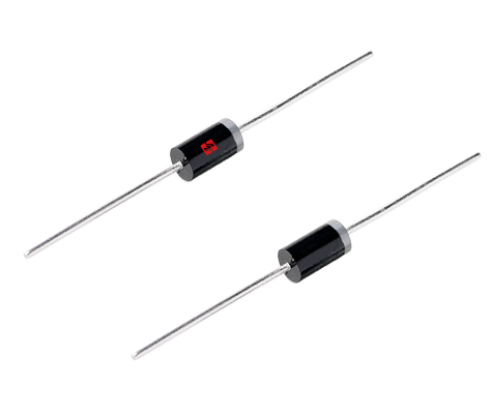

1N4003Active

The 1N4003 diode is a reliable rectifier diode rated at 200V and 1A, commonly used in power supplies, adapters, chargers, and general electronic protection circuits.It features a low forward voltage drop, and strong surge capability, ensuring efficient operation in both industrial and consumer electronic applications.

데이터시트 지금 문의하세요

전기적 매개변수

Part Number 1N4003

Package DO-41

AEC-Q101 Qualified No

VRRM [Max] (V) 200

VRMS [Max] (V) 140

IF(AV) [Max] (A) 1

IFSM [Max] (A) 30

VF [Max] (V) 1

Trr [Max] (ns) -

IR [max] (mA) 0.005

Cj [Typ] (PF) 21

TJ (°C) -55~+150

Status Active

특징

High Current Capability Low Forward Voltage Drop Low Reverse Leakage Fast Recovery Time Open Junction Chip 1N4003 ROHS Compliant
