정류 다이오드

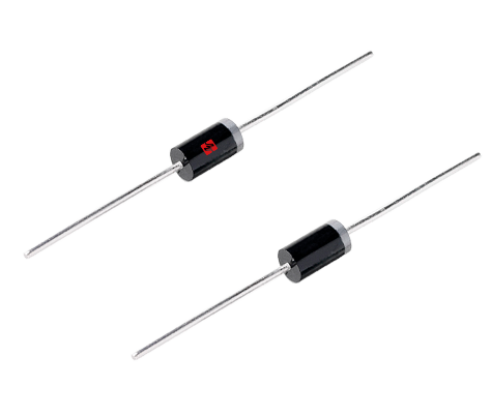

1N4001Active

The 1N4001 is a high-performance rectifier diode rated for 50V and 1A, perfect for AC to DC conversion,reverse polarity protection,and bridge rectifier designs.With high reliability, low cost, and high surge current capability,it is commonly found in power adapters,battery chargers,and other electronic devices.

데이터시트 지금 문의하세요

전기적 매개변수

Part Number 1N4001

Package DO-41

AEC-Q101 Qualified No

VRRM [Max] (V) 50

VRMS [Max] (V) 35

IF(AV) [Max] (A) 1

IFSM [Max] (A) 30

VF [Max] (V) 1

Trr [Max] (ns) -

IR [max] (mA) 0.005

Cj [Typ] (PF) 21

TJ (°C) -55~+150

Status Active

특징

High Current Capability Low Forward Voltage Drop Low Reverse Leakage Fast Recovery Time Open Junction Chip 1N4001 ROHS Compliant
