제너 다이오드

BZT52C5V6Active

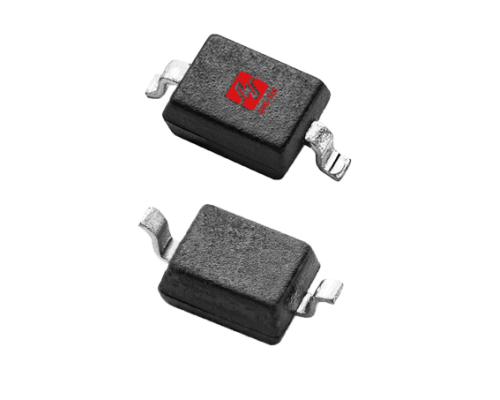

The BZT52C5V6 is a 5.6V Zener diode in a compact SOD-123 surface-mount package. It provides reliable voltage regulation and transient protection for a wide range of applications,including consumer electronics,power management,and portable devices.

데이터시트 지금 문의하세요

전기적 매개변수

Part Number BZT52C5V6

Package SOD-123

AEC-Q101 Qualified No

VZ [Nom] (V) 5.6

VZ [Min] (V) 5.2

VZ [Max] (V) 6

IZT (mA) 5

PD [Max] (W) 0.5

VF [Max] (V) 0.9

IR [max] (uA) 1

TJ (°C) -65 to +165

Status Active

특징

Planar Die Construction 500 mW Power Dissipation on Ceramic PCB Operating Temperature Range: -65°C to +165°C Ideally Suited for Automated Assembly Processes Low Leakage Current BZT52C5V6 RoHS Compliant
