제너 다이오드

BZT52C15SActive

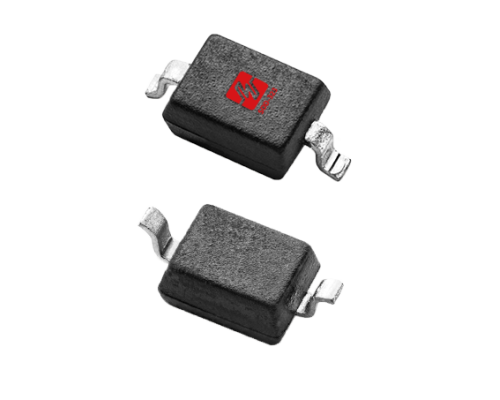

The BZT52C15S is a 15V Zener diode in a compact SOD-323 surface-mount package. It provides reliable voltage regulation and transient protection for a wide range of applications,including consumer electronics,power management,and portable devices.

데이터시트 지금 문의하세요

전기적 매개변수

Part Number BZT52C15S

Package SOD-323

AEC-Q101 Qualified No

VZ [Nom] (V) 15

VZ [Min] (V) 13.8

VZ [Max] (V) 15.6

IZT (mA) 5

PD [Max] (W) 0.2

VF [Max] (V) 0.9

IR [max] (uA) 0.1

TJ (°C) -55~+150

Status Active

특징

Planar Die Construction 200mW Power Dissipation on Ceramic PCB Operating Temperature Range: -55°C to +150°C SOD-323 Package Ideally Suited for Automated Assembly Processes Low Leakage Current BZT52C15S RoHS Compliant
