제너 다이오드

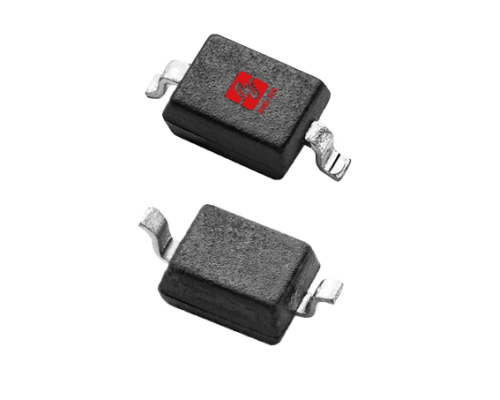

BZT52C15Active

BZT52C15 Zener Diode provides precise 15V voltage regulation by clamping reverse voltage,ensuring stable operation and protecting sensitive components from voltage transients. Ideal for reference voltage circuits, power supply stabilization,and industrial control electronics.

데이터시트 지금 문의하세요

전기적 매개변수

Part Number BZT52C15

Package SOD-123

AEC-Q101 Qualified No

VZ [Nom] (V) 15

VZ [Min] (V) 13.8

VZ [Max] (V) 15.6

IZT (mA) 5

PD [Max] (W) 0.5

VF [Max] (V) 0.9

IR [max] (uA) 0.1

TJ (°C) -65~+165

Status Active

특징

Planar Die Construction 500 mW Power Dissipation on Ceramic PCB Operating Temperature Range: -65°C to +165°C Ideally Suited for Automated Assembly Processes Low Leakage Current BZT52C15 RoHS Compliant
