프로그래밍 가능 회로 보호기

STP61089BActive

The STP61089B series programmable circuit protector can independently track the voltage of each positive/negative pair and protect two different SLIC (Subscriber Line Interface Card) positive/negative pairs. This product will protect the SLIC interface from damage caused by lightning induced surges and power failure phenomena.

데이터시트 지금 문의하세요

전기적 매개변수

Part Number STP61089B

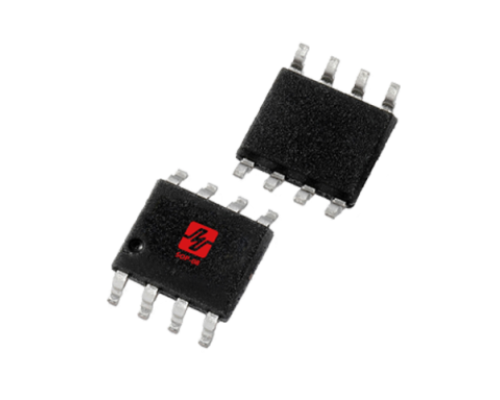

Package SOP-8

VDRM [Max] (V) -170

VGKRM[Max] (V) -167

VBO[Max] (V) -112

ITSP @5/310us (A) 70

VPP @10/700us (V) 3000

IGKS [max] (uA) -5

IH [Min] (mA) -150

CAK [max] (pF) 100

Status Active

제품 특징

Dual programmable transient suppressor Wide negative firing voltage range Low dynamic switching voltage Low gate triggering current Holding current: IH=150mA min RoHS compliant
