범용 TVS 다이오드

SMF12CAActive

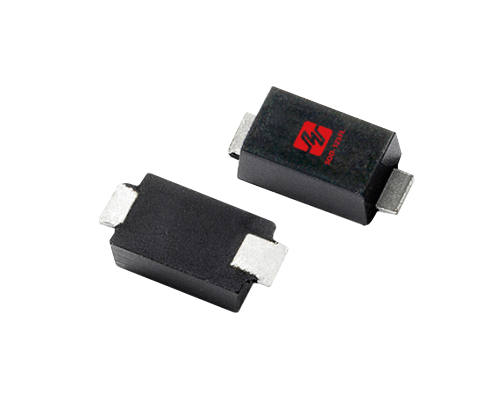

SMF12CA is a surface-mount TVS diode designed to safeguard sensitive electronics from ESD,voltage spikes,and transient surges.Encapsulated in a compact SOD-123FL package,it delivers fast response time,low clamping voltage,and strong surge handling performance.Compliant with IEC standards for ESD and surge immunity,the SMF12CA is an ideal solution for reliable circuit protection in space-limited applications.

데이터시트 지금 문의하세요

전기적 매개변수

Part Number SMF12CA

Package SOD-123FL

Polar Bi

Vrwm [Max] (V) 12

Vbr [Min] (V) 13.3

Vbr [Max] (V) 14.7

@ IT (mA)1

Vc@Ipp [Max] (V) 19.9

Ipp [Max] (A) 10.1

Ppp [Min] (W) 200

IR [Max] (uA)1

Tj (°C) -55~+150

Status Active

제품 특징

Low Incremental Surge Resistance Excellent Clamping Capability Fast Response Time Low Leakage Current Low Profile Package RoHS Compliant
