범용 TVS 다이오드

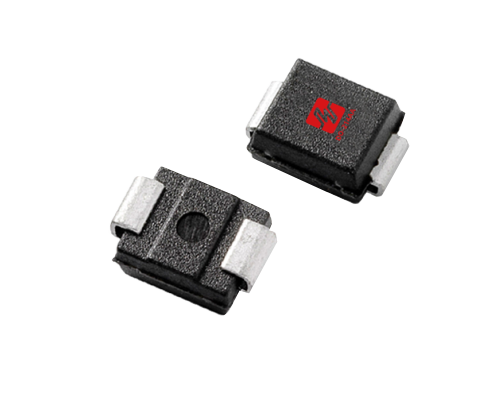

SMBJ7.0AActive

SMBJ7.0A is a surface mount transient voltage suppression diode designed to protect sensitive electronic equipment from transient voltages such as ESD, lightning strikes, and power surges. Its 7V breakdown voltage makes it an ideal choice for low voltage circuit protection and is widely used in communication equipment, consumer electronics, industrial control systems, and automotive electronics.

데이터시트 지금 문의하세요

전기적 매개변수

Part Number SMBJ7.0A

Package SMB

Polar Uni

Vrwm [Max] (V) 7

Vbr [Min] (V) 7.78

Vbr [Max] (V) 8.6

@ IT (mA)10

Vc@Ipp [Max] (V) 12

Ipp [Max] (A) 50

Ppp [Min] (W) 600

IR [Max] (uA)200

Tj (°C) -55~+150

Status Active

제품 특징

Low Incremental Surge Resistance Excellent Clamping Capability Fast Response Time Low Leakage Current Low Profile Package RoHS Compliant
