범용 TVS 다이오드

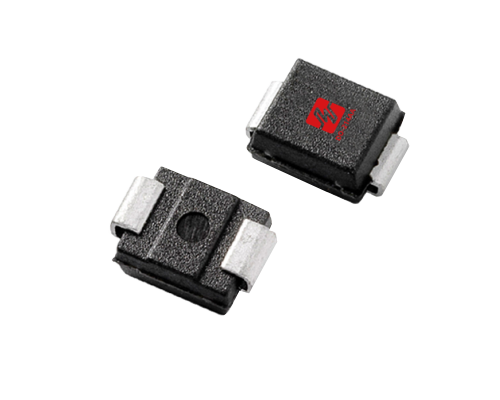

SMBJ60CAActive

In modern electronic systems, surge protection is an important part of ensuring safe and stable operation of circuits.The SMBJ60CA is a common transient voltage suppressor diode, which is widely used in various sensitive electronic devices to protect against transient overvoltage caused by lightning strikes,electrostatic discharge (ESD),switching operations,etc.

데이터시트 지금 문의하세요

전기적 매개변수

Part Number SMBJ60CA

Package SMB

Polar Bi

Vrwm [Max] (V) 60

Vbr [Min] (V) 66.7

Vbr [Max] (V) 73.7

@ IT (mA)1

Vc@Ipp [Max] (V) 96.8

Ipp [Max] (A) 6.2

Ppp [Min] (W) 600

IR [Max] (uA)1

Tj (°C) -55~+150

Status Active

제품 특징

Low Incremental Surge Resistance Excellent Clamping Capability Fast Response Time Low Leakage Current Low Profile Package ROHS Compliant
