범용 TVS 다이오드

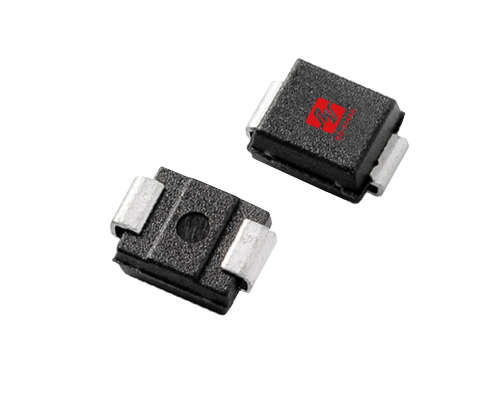

SMBJ6.5CAActive

When faced with voltage surges and transient disturbances,circuit safety is non-negotiable.The SMBJ6.5CA TVS diode stands out as a reliable choice across power supply,communication, and industrial control applications with its precise 6.5V clamping voltage,nanosecond-level response speed, and high surge absorption capacity of 600W.Featuring low leakage current and high stability,it ensures long-term durability of your equipment. Whether it's lightning strikes,electrostatic discharge,or power fluctuations,the SMBJ6.5CA responds swiftly to safeguard your critical circuits!

데이터시트 지금 문의하세요

전기적 매개변수

Part Number SMBJ6.5CA

Package SMB

Polar Bi

Vrwm [Max] (V) 6.5

Vbr [Min] (V) 7.22

Vbr [Max] (V) 7.98

@ IT (mA)10

Vc@Ipp [Max] (V) 11.2

Ipp [Max] (A) 53.6

Ppp [Min] (W) 600

IR [Max] (uA)500

Tj (°C) -55~+150

Status Active

제품 특징

Low Incremental Surge Resistance Excellent Clamping Capability Fast Response Time Low Leakage Current Low Profile Package RoHS Compliant
