범용 TVS 다이오드

SMBJ58CAActive

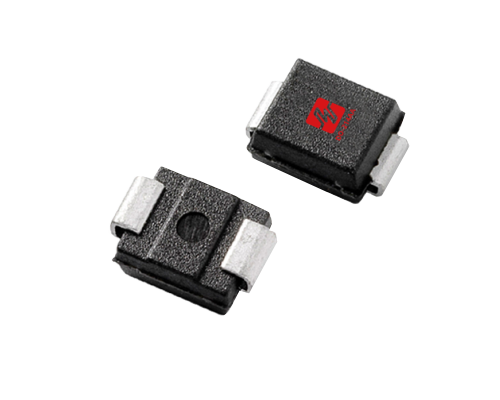

Voltage Spike Terminator-SMBJ58CA TVS Diode
This device uses advanced avalanche technology to achieve ultra-fast response in nanoseconds and is designed specifically for sensitive electronic systems. Its excellent surge absorption capability and stable reverse cutoff characteristics provide real-time protection for power lines, data interfaces and industrial control equipment, eliminating hidden damage caused by transient voltages.

데이터시트 지금 문의하세요

전기적 매개변수

Part Number SMBJ58CA

Package SMB

Polar Bi

Vrwm [Max] (V) 58

Vbr [Min] (V) 64.4

Vbr [Max] (V) 71.2

@ IT (mA)1

Vc@Ipp [Max] (V) 93.6

Ipp [Max] (A) 6.5

Ppp [Min] (W) 600

IR [Max] (uA)1

Tj (°C) -55~+150

Status Active

제품 특징

Low Incremental Surge Resistance Excellent Clamping Capability Fast Response Time Low Leakage Current Low Profile Package RoHS Compliant
