범용 TVS 다이오드

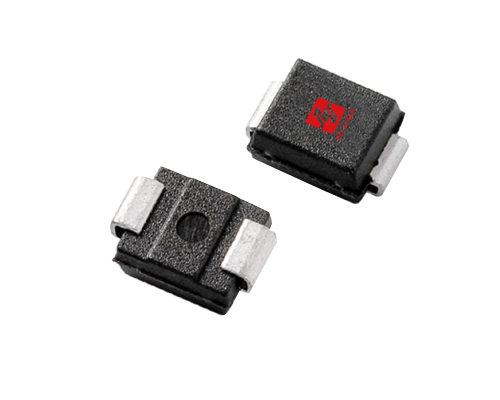

SMBJ48AActive

In modern electronic devices,transient voltage suppression diodes are key components for protecting sensitive circuits from voltage spikes and electrostatic discharge.The SMBJ48A with a working voltage of 48V is suitable for systems with voltages between 36-44V, making it an ideal protection device for 48V power systems.

데이터시트 지금 문의하세요

전기적 매개변수

Part Number SMBJ48A

Package SMB

Polar Uni

Vrwm [Max] (V) 48

Vbr [Min] (V) 53.3

Vbr [Max] (V) 58.9

@ IT (mA)1

Vc@Ipp [Max] (V) 77.4

Ipp [Max] (A) 7.8

Ppp [Min] (W) 600

IR [Max] (uA)1

Tj (°C) -55~+150

Status Active

제품 특징

Low Incremental Surge Resistance Excellent Clamping Capability Fast Response Time Low Leakage Current Low Profile Package RoHS Compliant
