범용 TVS 다이오드

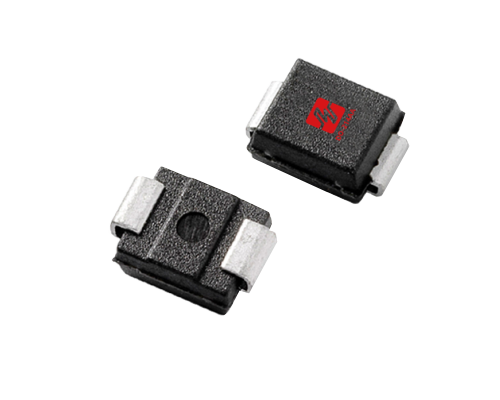

SMBJ15CAActive

SMBJ15CA TVS Diode-15V Bidirectional Surge Protection for Reliable Circuit Safety!
Protect your sensitive electronics from voltage spikes, ESD, and transient surges with the SMBJ15CA TVS diode-a high-performance, bidirectional transient voltage suppressor designed for robust over-voltage protection.

데이터시트 지금 문의하세요

전기적 매개변수

Part Number SMBJ15CA

Package SMB

Polar Bi

Vrwm [Max] (V) 15

Vbr [Min] (V) 16.7

Vbr [Max] (V) 18.5

@ IT (mA)1

Vc@Ipp [Max] (V) 24.4

Ipp [Max] (A) 24.6

Ppp [Min] (W) 600

IR [Max] (uA)1

Tj (°C) -55~+150

Status Active

제품 특징

Very fast response to transient overvoltages such as electrostatic discharge, surge, and inductive surge 600W power handling capability, can effectively absorb high energy pulses Applicable to AC signal lines or bipolar signal interfaces without polarity distinction Low Leakage Current, Does not affect system signal and power stability under normal operation The failure mode is short circuit type, which provides safer protection SMB chip package, small size, suitable for automatic placement
