범용 TVS 다이오드

SMBJ12AActive

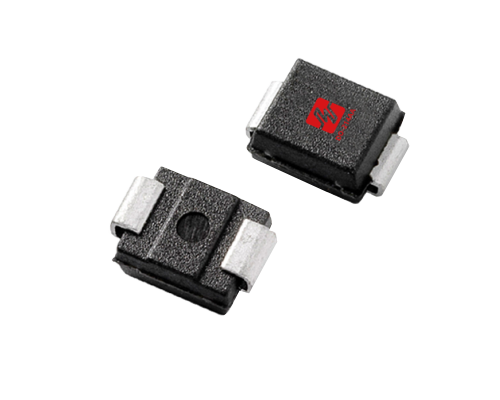

SMBJ12A is a high-performance uni-directional transient voltage suppression diode with a compact SMB package and 600W peak pulse power. It can respond quickly when voltage transients occur, effectively protecting electronic equipment from interference such as lightning strikes and inductive load switching.It is suitable for a variety of application scenarios such as communications, power supplies, and electronic control systems.

데이터시트 지금 문의하세요

전기적 매개변수

Part Number SMBJ12A

Package SMB

Polar Uni

Vrwm [Max] (V) 12

Vbr [Min] (V) 13.3

Vbr [Max] (V) 14.7

@ IT (mA)1

Vc@Ipp [Max] (V) 19.9

Ipp [Max] (A) 30.2

Ppp [Min] (W) 600

IR [Max] (uA)1

Tj (°C) -55~+150

Status Active

제품 특징

Low Incremental Surge Resistance Excellent Clamping Capability Fast Response Time Low Leakage Current Low Profile Package RoHS Compliant
