범용 TVS 다이오드

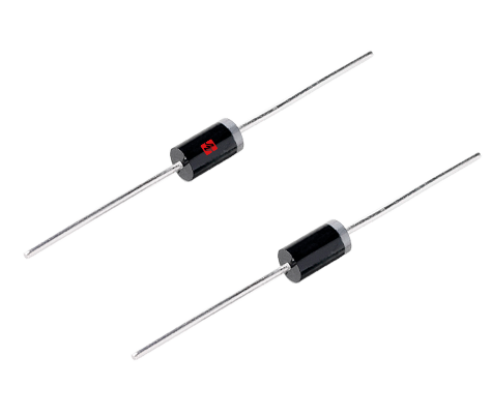

P6KE30AActive

The P6KE30A TVS diode is a high-performance transient voltage suppressor designed to protect sensitive electronic circuits from voltage spikes,ESD (electrostatic discharge),and surge events.With a 600W peak pulse power rating and a 30V breakdown voltage,this diode is widely used in power supplies,automotive systems,industrial equipment,and communication devices.

데이터시트 지금 문의하세요

전기적 매개변수

Part Number P6KE30A

Package DO-15

Polar Uni

Vrwm [Max] (V) 25.6

Vbr [Min] (V) 28.5

Vbr [Max] (V) 31.5

@ IT (mA)1

Vc@Ipp [Max] (V) 41.4

Ipp [Max] (A) 14.7

Ppp [Min] (W) 600

IR [Max] (uA)1

Tj (°C) -55~+150

Status Active

제품 특징

Low Incremental Surge Resistance Excellent Clamping Capability Fast Response Time Low Leakage Current Low Profile Package RoHS Compliant
