범용 TVS 다이오드

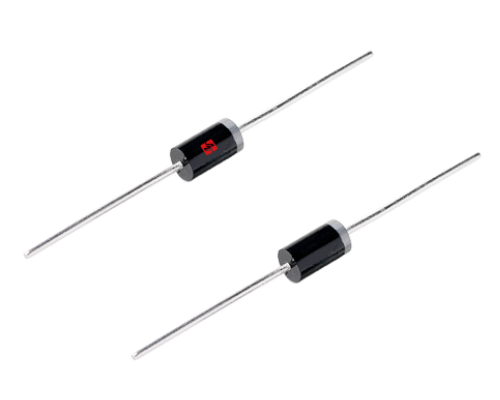

P6KE15CAActive

The P6KE15CA is a high-performance 600W transient voltage suppression diode designed to protect sensitive electronic circuits from voltage transients,electrostatic discharge (ESD),and electrical fast transients (EFT).Engineered for durability and fast response,it offers 15V standoff voltage,excellent clamping performance,and ultra-fast reaction time.Ideal for automotive,industrial,and telecom applications,the P6KE15CA ensures stable operation and extended product life in demanding environments.

데이터시트 지금 문의하세요

전기적 매개변수

Part Number P6KE15CA

Package DO-15

Polar Bi

Vrwm [Max] (V) 12.8

Vbr [Min] (V) 14.3

Vbr [Max] (V) 15.8

@ IT (mA)1

Vc@Ipp [Max] (V) 21.2

Ipp [Max] (A) 28.8

Ppp [Min] (W) 600

IR [Max] (uA)1

Tj (°C) -55~+150

Status Active

제품 특징

Low Incremental Surge Resistance Excellent Clamping Capability Fast Response Time Low Leakage Current Low Profile Package RoHS Compliant
