범용 TVS 다이오드

5.0SMDJ58CAActive

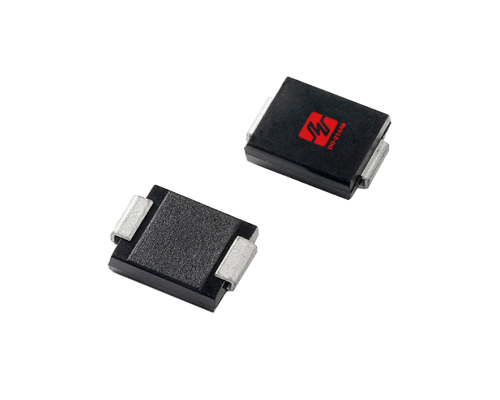

The 5.0SMDJ58CA is a high-performance bidirectional Transient Voltage Suppression diode designed to protect sensitive electronic circuits from damaging voltage transients and electrostatic discharge events.Encased in a DO-214AB surface-mount package,the device is engineered for applications requiring robust over-voltage protection.With a 5000W peak pulse power rating,it provides superior protection against high-energy transient events that could otherwise damage electronic components.

데이터시트 지금 문의하세요

전기적 매개변수

Part Number 5.0SMDJ58CA

Package SMC

Polar Bi

Vrwm [Max] (V) 58

Vbr [Min] (V) 64.4

Vbr [Max] (V) 71.2

@ IT (mA)1

Vc@Ipp [Max] (V) 93.6

Ipp [Max] (A) 53.5

Ppp [Min] (W) 5000

IR [Max] (uA)5

Tj (°C) -55~+150

Status Active

제품 특징

Low Incremental Surge Resistance Excellent Clamping Capability Fast Response Time Low Leakage Current Low Profile Package RoHS Compliant
