범용 TVS 다이오드

5.0SMDJ36CAActive

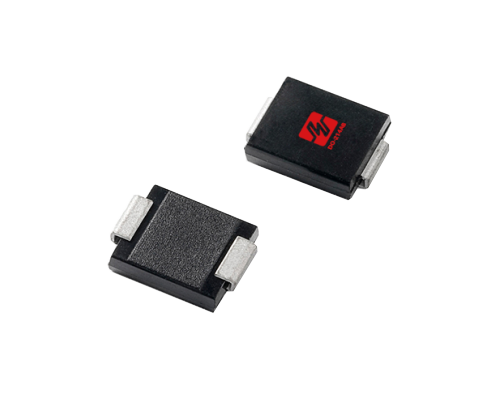

The 5.0SMDJ36CA is a bidirectional Transient Voltage Suppression diode designed for high-power protection applications. With exceptional clamping capability, ultra-fast response, and robust 5000W power rating, making it ideal for safeguarding sensitive components from voltage spikes induced by inductive load switching, lightning, or electrostatic discharge (ESD).

데이터시트 지금 문의하세요

전기적 매개변수

Part Number 5.0SMDJ36CA

Package SMC

Polar Bi

Vrwm [Max] (V) 36

Vbr [Min] (V) 40

Vbr [Max] (V) 44.2

@ IT (mA)1

Vc@Ipp [Max] (V) 58.1

Ipp [Max] (A) 86.1

Ppp [Min] (W) 5000

IR [Max] (uA)5

Tj (°C) -55~+150

Status Active

제품 특징

Low Incremental Surge Resistance Excellent Clamping Capability Fast Response Time Low Leakage Current Low Profile Package RoHS Compliant
