일반용 바리스터

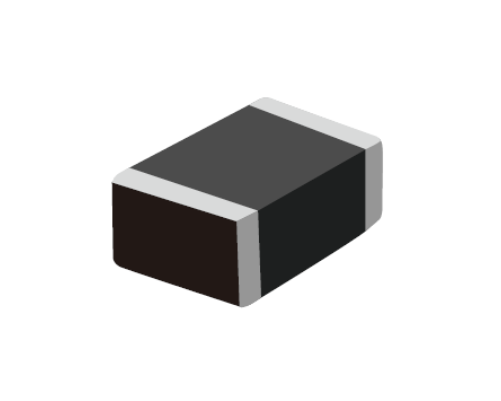

SMV1206B471AActive

The SMV1206B471A varistor adopts Semiware's unique MLV process achieving greater surge absorption capacity through smaller product size which is more suitable for customers to quickly install and miniaturize design needs. The product is a resistor device with nonlinear volt ampere characteristics mainly used for voltage embedding in circuits under overvoltage absorbing excess current to protect sensitive devices.

데이터시트 지금 문의하세요

전기적 매개변수

Part Number SMV1206B471A

Package SMV1206

VAC [Max] (V) 300

VDC [Max] (V) 385

V1MA [Nom] (V) 470

VC@IPP [Max] (V) 775

IPP [Max] (A) 100

IMAX @8/20uS (A) 10

Energy [Max] (J) -

Capacitance (pF) -

TSTG (°C) -40～+125

Status Active

제품 특징

Low Leakage Current High Surge Current Ability Suitable For ESD Protection
