4사분면 양방향 사이리스터

BTA41-1600BActive

The BTA41-1600B is a high-performance Triac designed for AC switching and phase control applications. With a maximum repetitive peak off-state voltage of 1600 V and an RMS on-state current up to 40 A, it delivers reliable and efficient operation in demanding circuits. This Triac is ideal for industrial and home appliance control, including motor drives, heaters, light dimmers, and other AC power control applications where stability and durability are essential.

데이터시트 지금 문의하세요

전기적 매개변수

Part Number BTA41-1600B

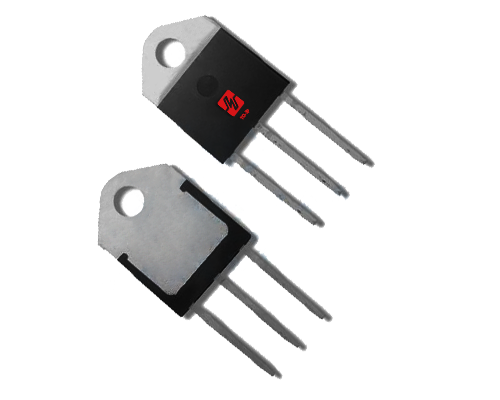

Package TO-3P

VDRM [Max] (V) 1600

VRRM [Max] (V) 1600

IT(RMS) [Min] (A) 40

ITSM [Min] (A) 400

VTM [Min] (V) ≤1.5

IGT_I [max] (mA) 50

IGT_II [max] (mA) 50

IGT_III [max] (mA) 50

IIGT_IV [max] (mA) 70

Tj (°C) -40~+125

Status Active

제품 특징

High Voltage Capability High Current Handling Low On-State Voltage Drop Snubberless Operation Planar Passivated 4-Quadrant BTA41-1600B
