4사분면 양방향 사이리스터

BT137-800DActive

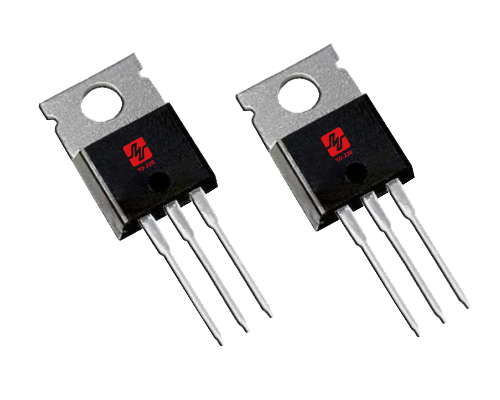

The BT137-800D is a robust 8A,800V bidirectional TRIAC in a TO-220C package,designed for efficient AC switching in medium-power applications.With high surge tolerance and reliable switching capability, it delivers reliable performance in lighting control (dimmers),motor speed regulation,fan controllers,and household appliances.

데이터시트 지금 문의하세요

전기적 매개변수

Part Number BT137-800D

Package TO-220C

VDRM [Max] (V) 800

VRRM [Max] (V) 800

IT(RMS) [Min] (A) 8

ITSM [Min] (A) 65

VTM [Min] (V) ≤1.6

IGT_I [max] (mA) 5

IGT_II [max] (mA) 5

IGT_III [max] (mA) 5

IIGT_IV [max] (mA) 10

Tj (°C) -40~+125

Status Active

제품 특징

High Current and Voltage Rating Low On-State Voltage Drop Low Gate Triggering Sensitive Gate Triggering Planar Passivated 4-Quadrant
