양방향 사이리스터

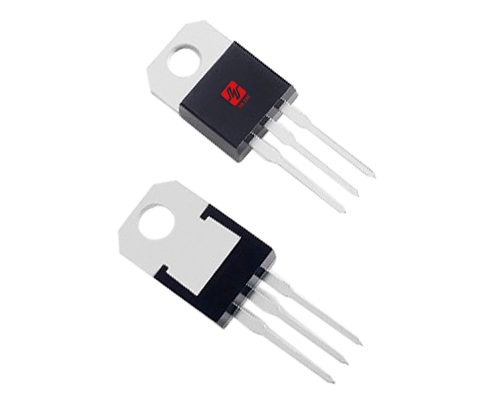

BTA16-600CWActive

The BTA16-600CW is a 16A,600V snubberless triac designed for robust AC power control in industrial and consumer electronics.This three-terminal bidirectional thyristor adopts snubberless technology,optimizing high-current switching performance with minimal external components,often eliminating the need for an external RC snubber network in many applications.With a low gate trigger current,it ensures reliable switching in dimmer circuits,motor controllers,solid-state relays, and heating systems.

데이터시트 지금 문의하세요

전기적 매개변수

Part Number BTA16-600CW

Package TO-220A

VDRM [Min] (V)600

VRRM [Min] (V)600

IT(RMS) [Min] (A)16

ITSM [Min] (A)160

VTM [Max] (V)1.5

IGT_I [max] (mA) 35

IGT_II [max] (mA) 35

IGT_III [max] (mA) 35

Tj (°C) -40~+125

Status Active

제품 특징

High On-State Current Low Thermal Resistance Low Gate Triggering Current Insulated Package Snubberless Design RoHS Compliant
