고신뢰성 사이리스터

STB50U90-2CActive

STB50U90-2C thyristor products utilizing SMB-T standard packaging feature low junction capacitance minimal leakage current robust surge absorption capability and strong stability. Widely applied in fields including network communication security monitoring industrial control computers and consumer electronics these products serve for overvoltage protection at data interfaces or power supply terminals.

데이터시트 지금 문의하세요

전기적 매개변수

Part Number STB50U90-2C

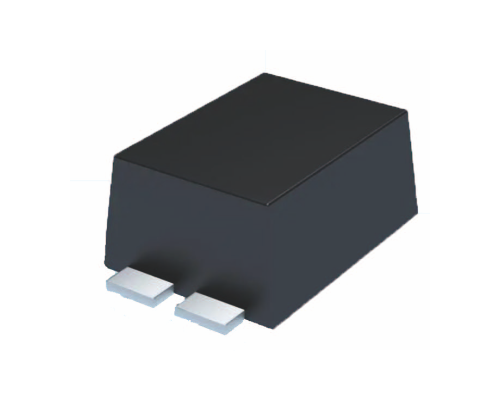

Package SMB-T

VDRM [Min] (V) 90

VS [Max] (V) 130

@IS (mA) 800

VT [Max] (V) 4

@IT (A) 2.2

IH [Min] (mA) 120

IPP @10x1000us (A) -

VPP @10x700us (V) -

IDRM [max] (uA) 5

CO [max] (pF) 200

Status Active

제품 특징

Excellent capability of absorbing transient surge Quick response to surge voltage（nS Level） Eliminates overvoltage caused by fast rising transients
