자동차용 MOSFET

SNM140N04GQActive

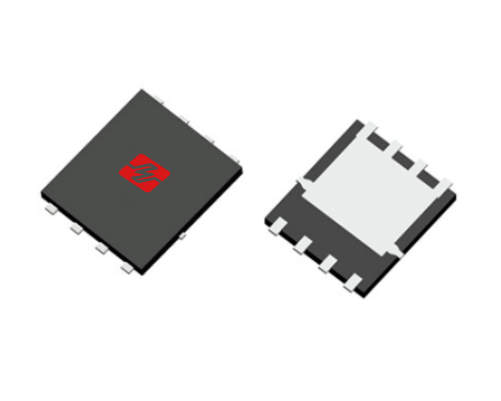

The SNM140N04GQ N-channel mosfet compliant with the AEC-Q101 certification.It utilizes the PDFN5x6-8L package and is manufactured through Semiware's advanced technology.It is particularly suitable for efficient switching DC/DC converters and switching mode power supplies in automotive electronic applications.

데이터시트 지금 문의하세요

전기적 매개변수

Part Number SNM140N04GQ

Package PDFN5x6-8L

AEC-Q101 QualifiedYes

Channel Type N

With ESD No

VDS [Max] (V) 40

VGS [Max] (V) ±20

ID [Max] (A) 20

RDS(ON)@10V
[Typ] (mΩ) 1.38

RDS(ON)@10V
[Max] (mΩ) 1.75

RDS(ON)@4.5V
[Typ] (mΩ) 1.95

RDS(ON)@4.5V
[Max] (mΩ) 2.9

RDS(ON)@2.5V
[Typ] (mΩ) -

RDS(ON)@2.5V
[Max] (mΩ) -

PD [Max] (W) 2.5

TJ (°C) -55～+175

Status Active

제품 특징

VDS = 40V, ID = 130A High density cell design for low RDS(ON) Split gate trench MOSFET technology
